Description
Flexible Construction Joint Sealant-Adhesive
Description

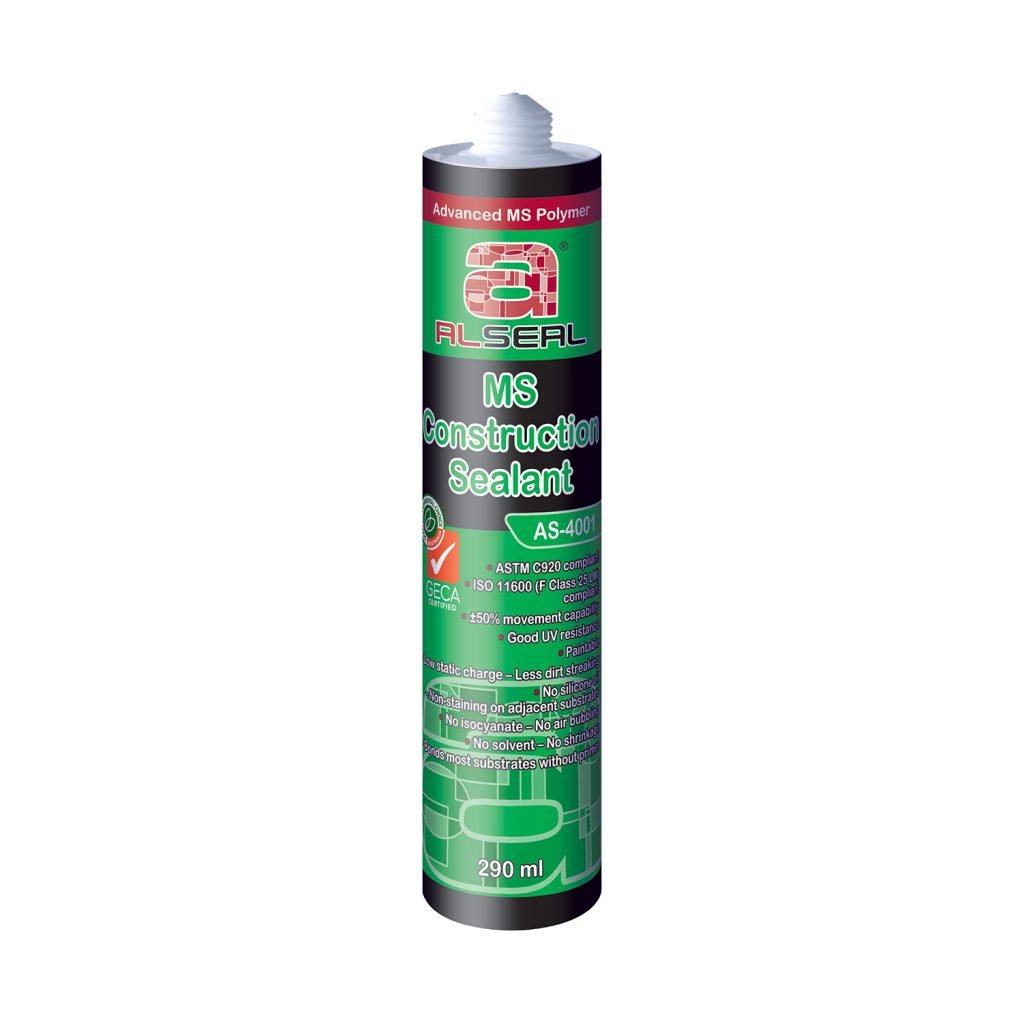

ALSEAL MS Construction Sealant is a one-component, high-performance hybrid sealant based on advanced MS Polymer technology. Its formula is designed to meet the stringent requirements of various joint sealing applications.
Unlike polyurethane sealants, its weather resistance is much better, so it has a longer service life. In addition, its solvent-free and isocyanate-free formula ensures that the cured sealant will not shrink or have bubbling problems. It also contains no silicone oil, minimizing the building aesthetic problems caused by the oil stains and streaks of dirt often associated with silicone sealants. The sealant’s adhesion to a wide range of substrates is excellent and it can be painted with most types of common industrial paints.
Applications

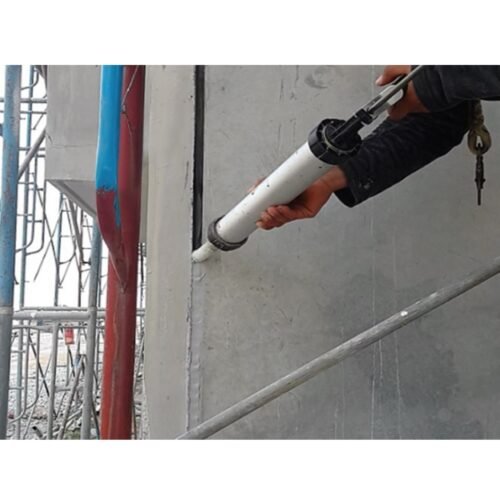

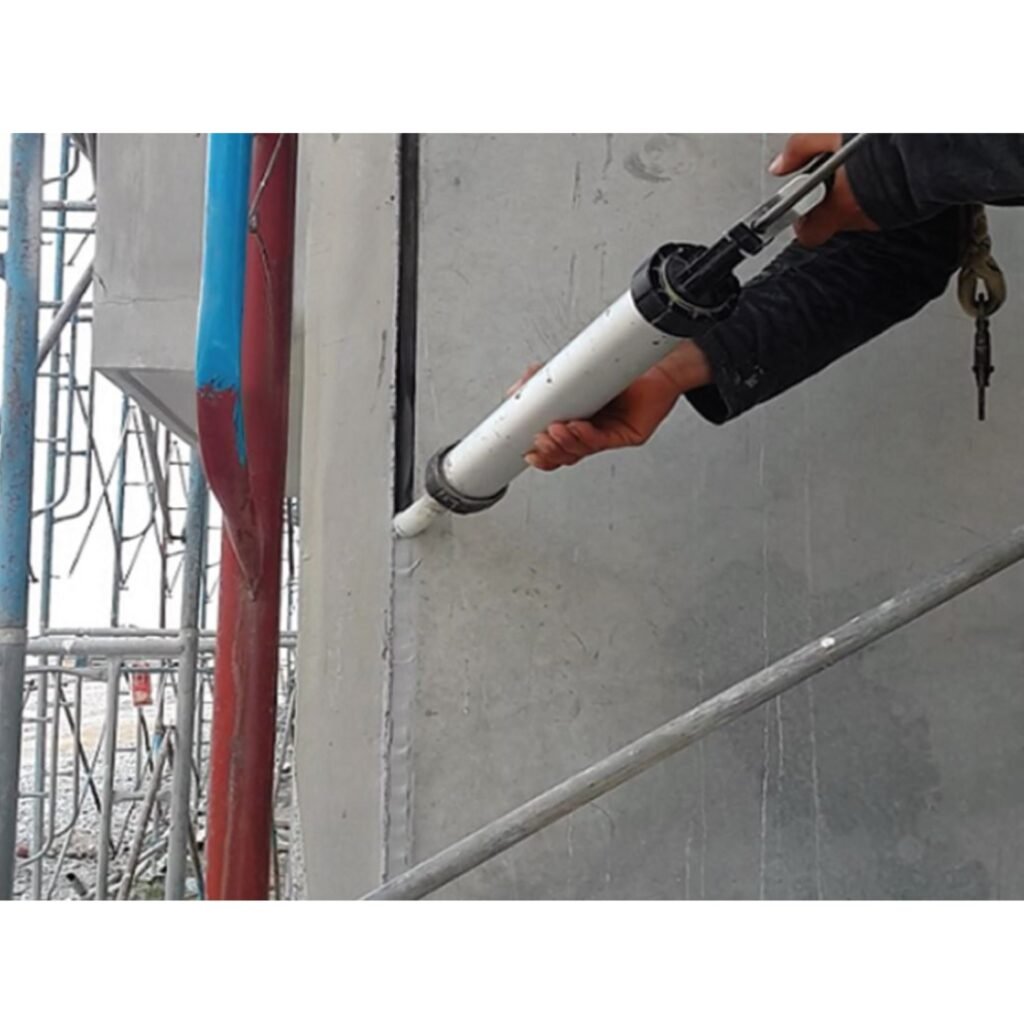

MS Polymer Base Sealant is recommended by leading architects, civil engineers, and designers for sealing concrete joints such as precast wall panel joints, expansion joints, control joints, butt joints, etc. It is also great for sealing perimeter window frames, especially when the sealant needs to be painted. Other recommended applications include sealing GRC panel systems, anodized aluminum, masonry, porcelain, coated metal, wood trim, epoxy and polyester panels, PVC, polystyrene and stainless steel.
Features

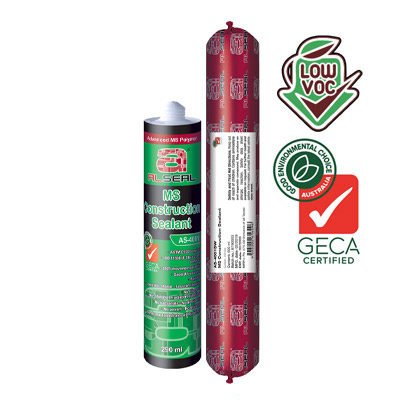

- Good Environmental Choice Australia (GECA) certified
- Leadership in Energy and Environmental Design (LEED) v4.1 EQ compliant
- ASTM C920 compliant
- Joint movement capability (ASTM C719) ±50%
- ISO 11600 (F Class 25 LM) compliant
- FDA 21 CFR Part 175.300 – Resinous and Polymeric Coatings compliant food contact
- ±50% movement capability
- Better weathering resistance compare with PU sealants
- Paintable
- Low static charge – Less dirt streaking
- No silicone oil – Non-staining on adjacent substrates
- Free of isocyanate – No blistering
- No solvent – No shrinkage
- Bonds most substrates without primer

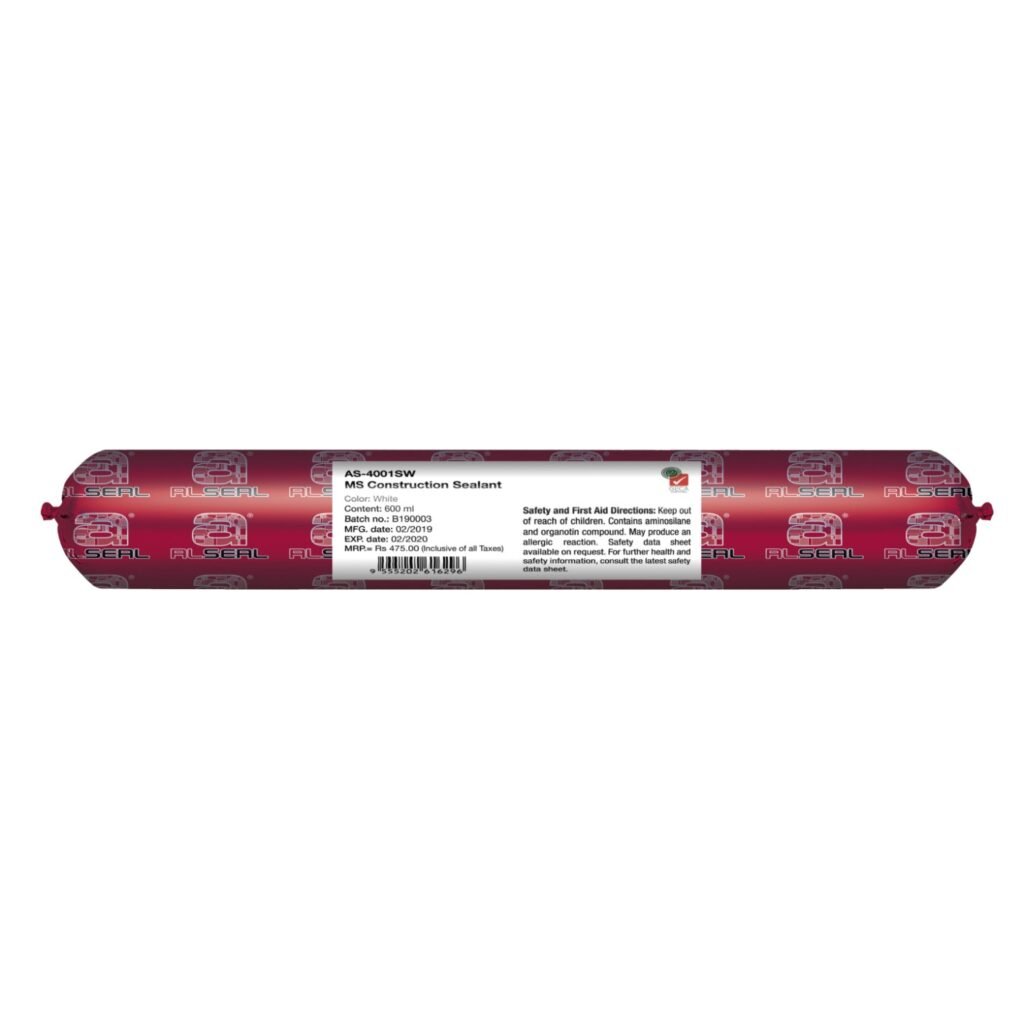

Ask about ALSEAL MS Polymer Joint Sealant AS-4001 in all specialty building materials stores
Technical Data
Curing system: Moisture curing
Density: 1.53 – 1.58 g/mL
Tensile at break (ASTM D412): >1.0 N/mm²
Elongation at break (ASTM D412): >500 %
Shore A hardness (ASTM C661): 25 – 35
Joint movement capability (ASTM C719): ±50 %
Elastic recovery (ISO 7389): >70 %
Slump (ASTM D2202): <1mm
VOC content (USEPA Test Method 24): <10g/L
Cure depth (24 hours) at 23° C, 50% humidity: Approx. 3mm
Clean Up
Wet sealants can be cleaned up with acetone or mineral spirits.
Cured sealants can only be removed mechanically.
Joint Design
Joint dimension should be designed by taking into consideration the movement capability of the sealant
and the anticipated joint movement
Generally, the joint width-to-depth ratio is 2:1 for joint width ≥12 mm, or 1:1 for joint width <12 mm
Joint width: minimum = 6 mm, maximum = 35 mm *
Joint depth: minimum = 6 mm, maximum = 12 mm
* Sealing joints with larger joint width is possible but sealant may sag in vertical applications.
Coverage
Width Depth Coverage Coverage
290ml* 600ml*
6mm 6mm 7.32 meter 15.15 meter
10mm 10mm 2.64 meter 5.45 meter
20mm 10mm 1.32 meter 2.73 meter
25mm 12mm 0.88 meter 1.82 meter
* The coverage figures shown above are approximate lineal meter run based on 10% wastage assumption.
Actual coverage may vary.
¨ Calculation formula:
X / [(Y x Z) x 1.1] = Coverage
X = volume of cartridge (or sausage) in ml,
Y = joint width in cm, Z = joint depth in cm,
1.1 = 10% wastage assumption,
Coverage = lineal meter run in cm per cartridge
Limitation
Not recommended for the following applications:
Below waterline or permanent water immersion.
Outdoor sealing/bonding adjacent to glass substrates.
Polyethylene, polypropylene, polytetrafluoroethylene (Teflon), neoprene, and bituminous surfaces.
Overcoated with:
Alkyd resin paint – cure inhibition to the paint
Chlorinated paint – staining issue
Oil based paint – not compatible
Warranty Information
Alseal Marketing provides a material warranty for a duration of 5 years if the product is used within its shelf life and in compliance with industrial standard application procedures. We disclaim liability for any consequential or incidental loss or damages caused by incorrect usage. The material warranty only covers the replacement of the product without the other costs incurred, if the failure is proven to be directly related to the product within the warranty period. Material warranty will only be available once the customer submits all the necessary documents and information, and an official material warranty letter is issued by Alseal Marketing. Any claim of warranty shall be made directly to Alseal Marketing in writing. Alseal Marketing shall hold no responsibility until site inspection by representatives of Alseal Marketing to confirm the alleged failure has been carried out.
Disclaimer
Every endeavour has been made to ensure that the information given herein is true and reliable but it is given only for the guidance of our customers. The company cannot accept any responsibility for the loss or damage that may result from the use of the information, due to the possibility of variations of processing or working conditions and of workmanship outside our control. Users are advised to confirm the suitability of this product by their own tests.
